Brand Name : Bernet
Model Number : FM50A
Certification : ISO900,OIML,CE,EXPROOF
Place of Origin : Anhui,China
MOQ : 2pcs
Price : $200.00-$220.00/pieces 1-199 pieces
Payment Terms : T/T, L/C, Western Union
Supply Ability : 10000pcs per month
Delivery Time : 10-30DAYS
Packaging Details : 1set PER BOX
Warranty : 1 Year
Pressure Range : 0.5MPa~2.5MPa
Accuracy : ±0.3%
Temperature Range : -25℃~+55℃
Model : LPG-1
Power Supply : AC220V/50Hz
Communication Protocol : RS485
Flow Meter : Coriolis Mass Flow Meter
Capacity : 50L/min
Nozzle : Automatic Shut-off Nozzle
Display : LCD
Material : Stainless Steel
Hose : 4m
Product Overview
FM50A flow meter is in construction of ALUMINUM ALLOY bushand four-piston positive displacement with check valvebulitin, with advantage of high reliability , good wearability.prescise measure, and long life.
Technical Specification
Max Working Pressure: | 1.8MPa |
Flow Rate: | 5-60L |
Discharge Rate Per Revoluton; | 0.5L/r |
Adjustable Minimum Volume: | 0.1% |
Accuracy: | 士0.5% |
Repeatable Tolerance: | <0.25% |
Package | 1 pc/carton |
Net Weight: | 31Kg |
Gross Weight: | 33Kg |
Dimension: | 360X290X360mm |
![]() |

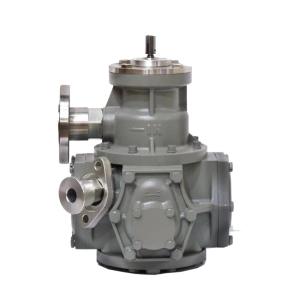

Iso9001 LPG Fuel Dispenser Flow Meter FM50A For Gas Pump Images |
